APC by Schneider Electric Dry Contact I/O SmartSlot Card
$309.99
APC AP9613, Black, REACH RoHS EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, EN61000-4-2, EN61000-4-3,…, 0 – 40 °C, -15 – 65 °C, 4.76″ (121 mm), 4.49″ (114 mm)
Out of stock
Description
This product is EOL and replaced by the AP9614

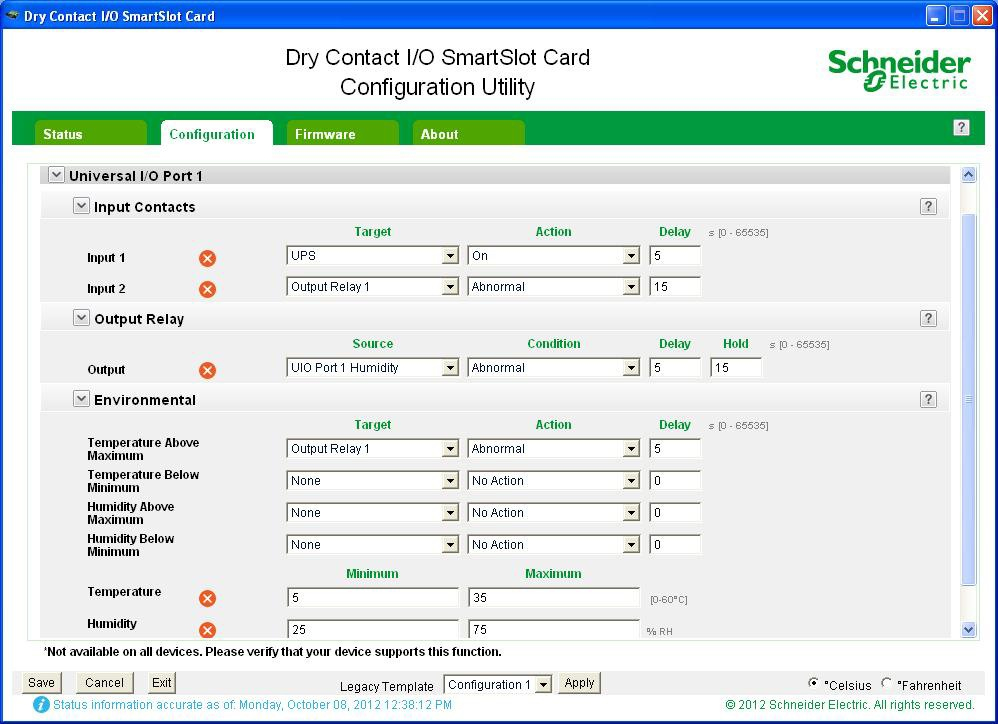

The Dry Contact I/O Card provides 6 configurable output relays and 4 input contacts to monitor external triggers and initiate actions on external devices. The 2 Universal I/O (UIO) ports support optional environmental sensors and the Dry Contact I/O Accessory. The Dry Contact I/O Accessory provides 2 additional dry contact input and relay output interfaces. Connect the included USB cable to the Card and a PC to use the Configuration Utility user interface. Configure UPS settings and output relay, input contact and environmental sensor actions based on status changes or UPS events.
Gallery
Manufacturer Specifications
| Features | |
|---|---|
| Product color | Black |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Certificates | |
| Certification | REACH RoHS EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-6, FCC 15 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -15 – 65 °C |
| Weight & dimensions | |
| Width | 4.76″ (121 mm) |
| Depth | 4.49″ (114 mm) |
| Height | 1.5″ (38 mm) |
| Weight | 7.41 oz (210 g) |
Additional information
| Weight | 1.0 lbs |
|---|---|
| Dimensions | 9.4 × 6.5 × 1.9 in |
