APC Rack PDU, 2G, metered, 0U, 17.2kW, 208V, 30 C13 sockets

APC Rack PDU, 2G, metered, 0U, 17.2kW, 208V, 30 C13 sockets

$2,578.56

APC AP8867, Metered, 0U, Horizontal/Vertical, Black, LCD, 30 AC outlet(s)

In stock (Only 4 left - order soon!)

Standard Shipping within the US: 2-8 business days.

Refund and Returns Policy

SKU: AP8867 Categories: ,

Description

– Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

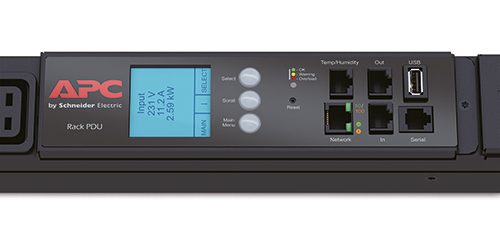

– The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.
– Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)
– Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
– An IT-ready, scalable monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
– Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)

Key Features

  • Metered 0U Black
  • LCD
  • 30 AC outlet(s) C13 coupler

Gallery

Manufacturer Specifications

Design
PDU types Metered
Rack capacity 0U
Mounting Horizontal/Vertical
Product color Black
Display LCD
Ports & interfaces
AC outlets quantity 30 AC outlet(s)
AC outlet types C13 coupler

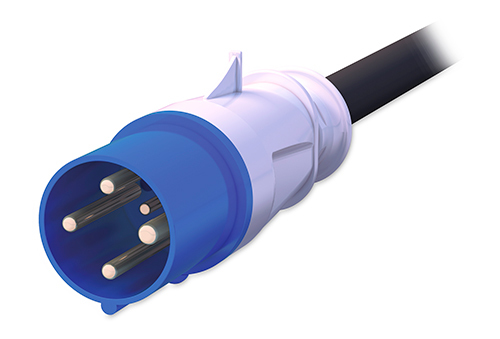

Input connection type IEC 309 60A 3P+PE
Features
Cable length 72″ (1.83 m)
Power
Nominal input voltage 208 V
AC input frequency 50 – 60 Hz
Maximum current 60 A
Nominal output voltage 208 V
Output voltage 208 V
Load capacity 17300 VA
Maximum input current per phase 48 A
Maximum total current draw per phase 48 A
Power protection features Overload
Certificates
Compliance certificates RoHS
Certification cUL, EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC-15 A, UL, VCCI A
Operational conditions
Operating temperature (T-T) 0 – 55 °C
Storage temperature (T-T) -25 – 65 °C
Operating relative humidity (H-H) 0 – 95%
Storage relative humidity (H-H) 5 – 95%
Operating altitude 0 – 118110.2″ (0 – 3000 m)
Non-operating altitude 0 – 590551.2″ (0 – 15000 m)
Weight & dimensions
Width 2.2″ (56 mm)
Depth 2.01″ (51 mm)
Height 72″ (1829 mm)
Weight 22.5 lbs (10.2 kg)

Additional information

Weight 30.9 lbs
Dimensions 4.4 × 8.7 × 84.6 in
