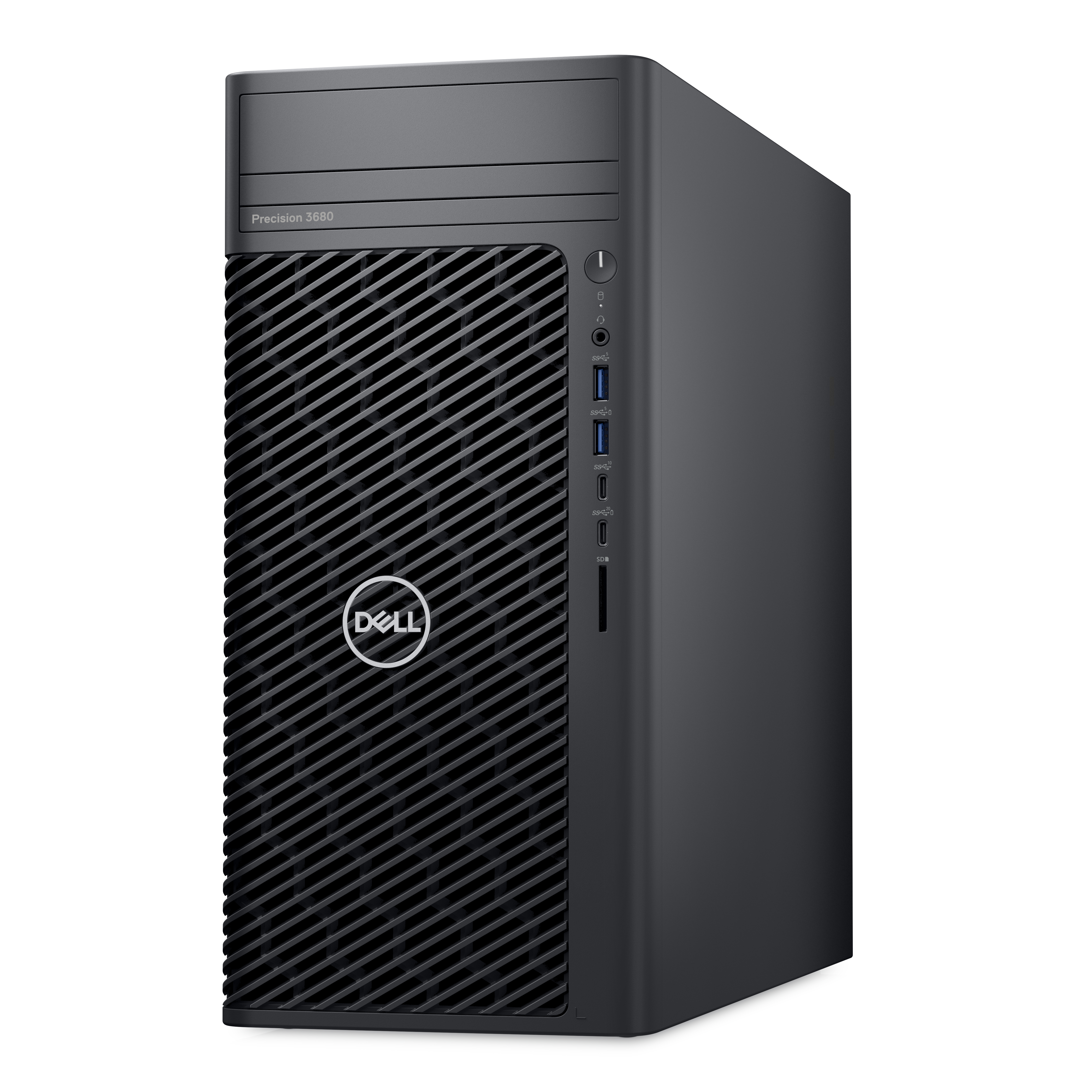

Dell Precision 3000 3680 Workstation – Core i5 14th Gen i5-14500 – vPro Technology – 16 GB – 512 GB SSD – Tower – Black
$2,400.95
DELL Precision 3680, Intel® Core™ i5, i5-14500, 16 GB, 512 GB, DVD±RW, Windows 11 Pro
Out of stock
Description
Exceptionally scalable performance in an entry tower design
The new 3680 Tower is Dell’s fastest workstation for single-threaded tasks, featuring new 14th Gen Intel® Core™ processors with Unlimited Turbo Duration.
Key Features
- Windows 11 Pro 64-bit
- Intel Core i5-14500 (24MB Cache)
- NVIDIA T1000 (4GB GDDR6)
- 16GB DDR5-SDRAM (2 x 8) & 512GB SSD
Gallery
Manufacturer Specifications
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | Intel® Core™ i5 (14th gen) |
| Processor model | i5-14500 |
| Processor cores | 14 |
| Processor threads | 20 |
| Processor boost frequency | 5 GHz |
| Performance cores | 6 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 5 GHz |
| Efficient-core Max Turbo Frequency | 3.7 GHz |
| Performance-core base frequency | 2.6 GHz |
| Efficient-core base frequency | 1.9 GHz |
| Processor cache | 24 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Processor base power | 65 W |
| Maximum turbo power | 154 W |
| Memory | |
| Internal memory | 16 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 4x DIMM |
| Non-ECC | Yes |
| Memory data transfer rate | 4400 MT/s |
| Storage | |
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Optical drive type | DVD±RW |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Graphics | |
| Discrete graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| On-board graphics card | Yes |
| Discrete graphics card model | NVIDIA T1000 |
| Discrete graphics card memory | 4 GB |
| Discrete graphics memory type | GDDR6 |
| Number of discrete graphics cards | 1 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| LAN controller | Intel® I219-LM |
| Wi-Fi | No |
| Ports & interfaces | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 3 |
| USB 3.2 Gen 2×2 Type-C ports quantity | 1 |
| PowerShare | Yes |
| Number of USB ports with PowerShare support | 2 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4a |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-out | Yes |
| Combo headphone/mic port | Yes |
| Number of rear USB ports | 6 |
| Number of front USB ports | 4 |
| Design | |
| Chassis type | Tower |
| Placement supported | Vertical |
| Water cooling system | No |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product color | Black |
| Viewing window | No |
| Performance | |
| Market positioning | Business |
| Motherboard chipset | Intel W680 |
| Audio chip | Realtek ALC3246-CG |
| Audio system | High Definition Audio |
| Built-in speaker(s) | Yes |
| Number of speakers | 1 |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Product type | Workstation |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Power | |
| Power supply | 500 W |
| Power supply input voltage | 90 – 264 V |
| Power supply input frequency | 47/63 Hz |
| 80 PLUS certification | 80 PLUS Platinum |
| Operational conditions | |
| Operating temperature (T-T) | 10 – 35 °C |
| Storage temperature (T-T) | -40 – 65 °C |
| Operating relative humidity (H-H) | 20 – 85% |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating altitude | -598.4 – 120000″ (-15.2 – 3048 m) |
| Non-operating altitude | -598.4 – 420000″ (-15.2 – 10668 m) |
| Operating vibration | 0.52 G |
| Non-operating vibration | 2 G |
| Operating shock | 40 G |
| Non-operating shock | 105 G |
| Sustainability | |
| Sustainability certificates | ENERGY STAR, EPEAT Gold |
| Weight & dimensions | |
| Width | 6.81″ (173 mm) |
| Depth | 16.5″ (420.2 mm) |
| Height | 14.7″ (372.9 mm) |
| Weight | 16.7 lbs (7.58 kg) |
| Packaging content | |
| Mouse included | Yes |
| Keyboard included | Yes |
| Cables included | AC |
| Display | |
| Display included | No |
Additional information
| Weight | 26.65 lbs |
|---|---|
| Dimensions | 21.0 × 19.2 × 13.9 in |
